10-35° balcony solar bracket

Supplier CYC Energy’s 10-35° balcony solar bracket is a compact mounting solution tailored for urban balconies, terraces and building facades. It enables residents and property owners to build distributed PV systems without roof access or structural alterations.Compatible with 400W–600W solar panels and featuring 10° to 35° tilt adjustment, it optimizes power generation for different latitudes and seasons. Made of high-strength anodized aluminum alloy, the bracket offers 30-year corrosion resistance, with tool-free, concrete-free easy installation.

What Makes the 10-35° Balcony Solar Bracket Ideal for Urban PV?

The 10-35° balcony solar bracket addresses the fastest-growing segment in European residential solar: balcony-mounted systems. Unlike rooftop PV, which requires structural surveys, scaffolding, and professional installation teams, this bracket empowers property owners and installers to deploy solar quickly and cost-effectively on existing balcony railings.

Core Advantages for Installers and Property Owners

• Tool-free assembly – All components connect with pre-installed fasteners; no welding, drilling, or cutting required on-site.
• Adjustable tilt (10°–35°) – Optimize panel angle for seasonal sun path; set once or adjust twice per year for maximum yield.

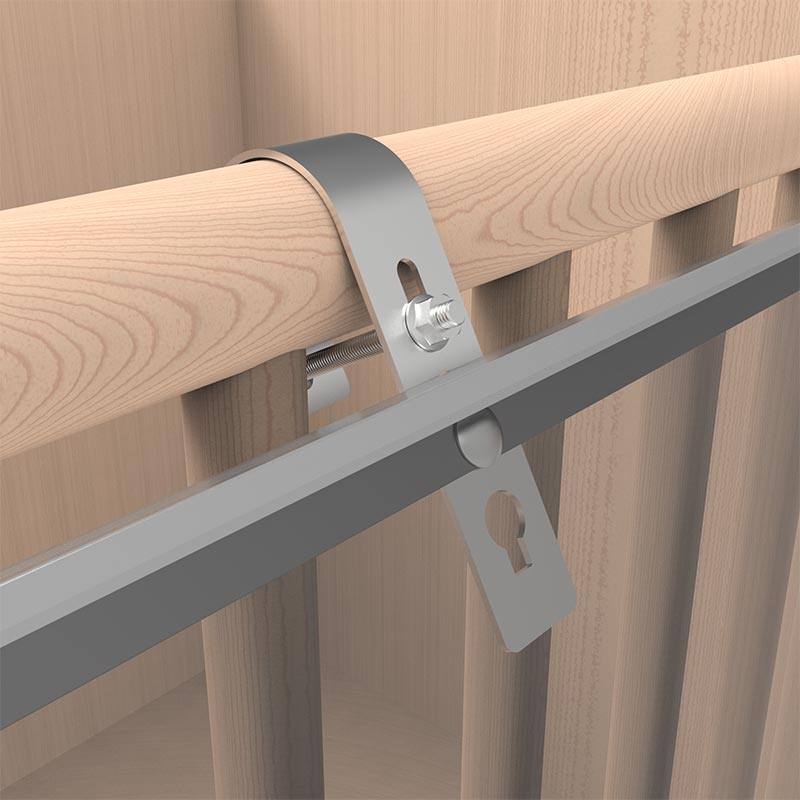

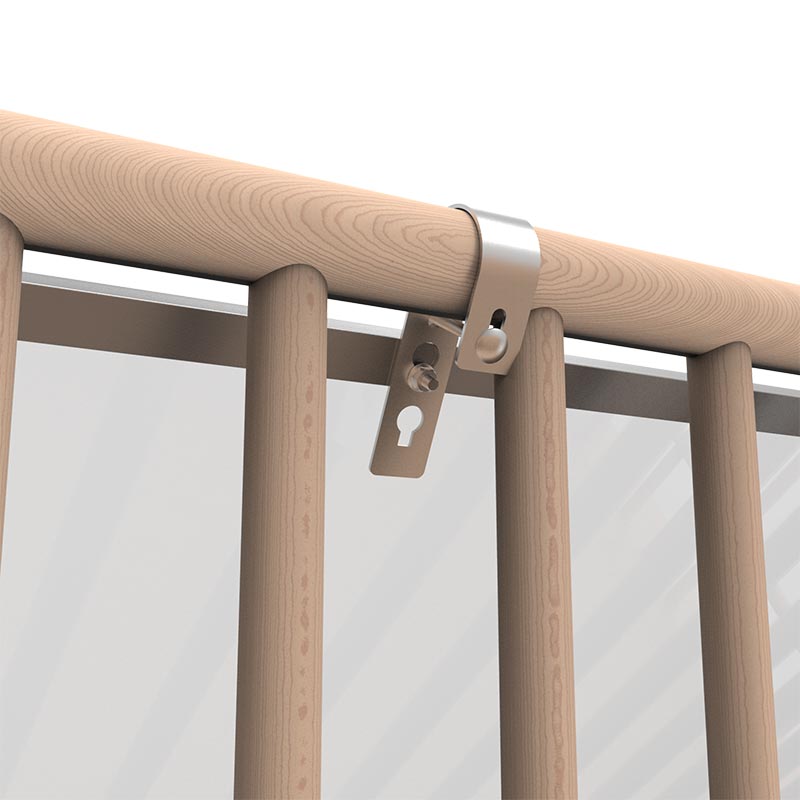

• Zero roof penetration – Clamps attach securely to balcony railings (round, square, or flat profiles) without damaging building fabric.
• Lightweight aluminum construction – Each bracket weighs under 8kg, suitable for balcony load limits without structural reinforcement.
• Quick installation – Typical install time: 1.5–2 hours for two brackets and one PV module.
• Plug-and-play electrical compatibility – Designed for micro-inverters or balcony solar kits with standard MC4 connectors.

Primary Application Scenarios

• Residential apartments – Renters and owners generate up to 600W per balcony, offsetting 20–30% of household consumption.
• Multi-unit residential buildings – Scalable solution for building owners offering tenant solar subscriptions.
• Commercial facades – Hotels, offices, and retail spaces utilize unused vertical surfaces.
• Temporary or mobile installations – RVs, tiny homes, and construction site offices benefit from portable solar.

Technical Specifications

CYC Energy designs the 10-35° balcony solar bracket with precision-engineered components to meet European building regulations and balcony load requirements.

Structural Parameters

Material and Corrosion Protection

• Aluminum alloy: 6063-T5 grade with minimum yield strength 170 MPa.
• Anodized coating: ≥10μm thickness per ISO 7599; provides corrosion resistance in C3 (urban/industrial) and C4 (coastal) environments.
• Stainless steel fasteners: All bolts, clamps, and washers are Grade 304 stainless steel for zero corrosion risk.
• Load capacity per bracket: Designed to support modules up to 25kg each (two brackets per module recommended).

Ready to Size a 10-35° Balcony Solar Bracket for Your Project?

Submit your balcony railing type and module size for a free compatibility check and quotation—response within 24 hours.

Email: mayfairchan@cyc-energy.com  |  WhatsApp: +86 18030291681

Installation Process – Simple, Fast, No Special Tools

The 10-35° balcony solar bracket is engineered for rapid installation by homeowners or general handymen. No specialized skills, scaffolding, or heavy equipment are required.

Step-by-Step Installation Workflow

1. Assess balcony railing – Measure railing profile (round, square, or flat) and confirm clamp compatibility.
2. Attach upper clamps – Secure upper bracket clamps to the railing at the desired height; hand-tighten.
3. Attach lower clamps – Position lower bracket clamps to achieve the desired tilt angle (10°, 15°, 20°, 25°, 30°, or 35°).

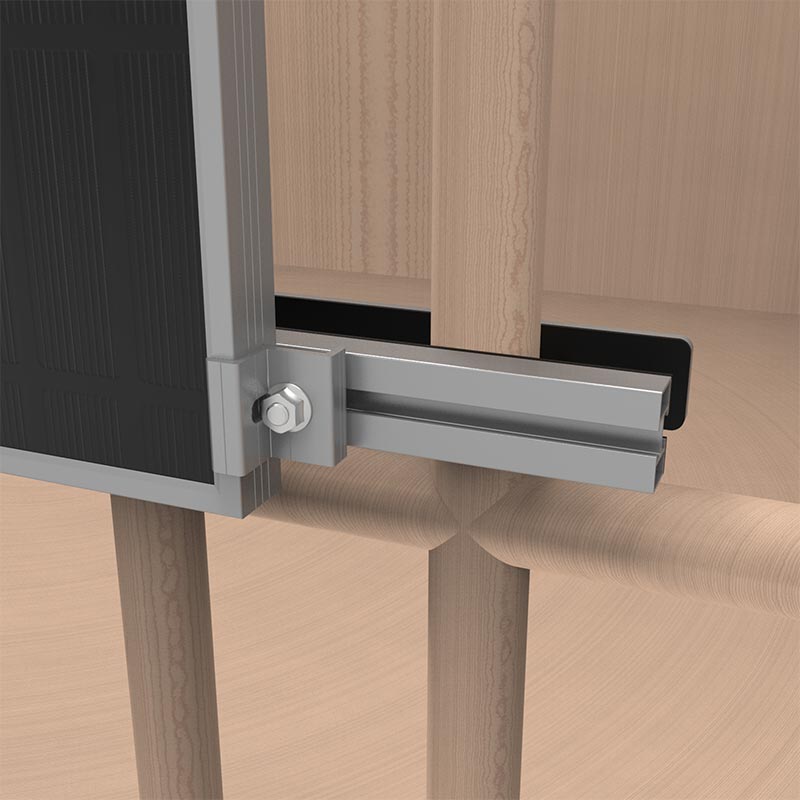

4. Mount PV module – Place the module into the bracket channels; secure with provided end clamps.
5. Adjust tilt angle – Set the angle using the pre-drilled adjustment holes; lock with stainless steel pins.
6. Electrical connection – Connect module leads to micro-inverter or balcony solar controller (not included).
7. Final inspection – Verify all clamps are tightened; confirm module is secure and square.

Important: The 10-35° balcony solar bracket must be installed by a competent person following local electrical regulations. CYC Energy provides detailed installation manuals and online video support.

Angle Optimization: 10°–35° for Maximum Energy Yield

The adjustable tilt range of the 10-35° balcony solar bracket allows users to optimize energy production based on latitude and season.

Recommended Angles by Latitude

Energy yield benefit: Adjusting the tilt angle twice per year can increase annual energy output by 8–12% compared to a fixed angle. For users who prefer a set-and-forget approach, the optimal fixed angle for most European cities is 25°–30°.

Why Choose CYC Energy's 10-35° Balcony Solar Bracket?

Manufacturing Excellence

CYC Energy operates an ISO 9001:2015-certified production facility in Xiamen, China, with over 20 years of cumulative solar mounting experience and a dedicated team of 15+ skilled technicians. Our manufacturing processes for the 10-35° balcony solar bracket include:

• CNC precision cutting – Dimensional accuracy within ±0.5mm for all components.
• Robotic welding – Consistent, high-quality joints with full penetration.
• Anodizing line – In-house anodizing with quality control per QUALANOD standards.
• 100% inspection – Every bracket checked for dimensions, coating thickness, and fastener torque.
• Load testing – Batch sampling validates structural capacity per Eurocode standards.

International Certifications (Active)

Quality Documentation Per Shipment

• Mill test certificates for aluminum alloy composition
• Anodizing thickness reports (5-point measurement per component)
• Dimensional inspection logs
• Installation manual and method statement
• Compliance declarations (CE, UKCA as applicable)

Global Export Experience

CYC Energy has supplied the 10-35° balcony solar bracket and other solar mounting systems to customers across Europe, Asia-Pacific, North America, and the Middle East.

Verified Export Destinations

• Europe: Germany, Poland, Italy, Spain, Netherlands, UK, France, Austria, Switzerland
• Asia-Pacific: Australia, Japan, Thailand, Vietnam, Philippines
• North America: USA, Canada
• Middle East: UAE, Saudi Arabia, Israel

For each market, CYC Energy maintains compliance documentation, including structural calculations adapted to local wind/snow loads and building regulations.

Compliance with European Balcony Solar Regulations

Germany, Austria, Switzerland, and other European countries have introduced simplified approval processes for balcony solar systems. The 10-35° balcony solar bracket is designed to meet the technical requirements of these regulations.

Key Compliance Features

• Plug-in ready: Compatible with standard Schuko or Wieland connectors for simplified grid connection per VDE-AR-E 2510-2 (Germany).
• Structural compliance: Engineered per Eurocode EN 1991-1-4 (wind) and EN 1991-1-3 (snow) for building authority approval.
• MCS012 certified: Approved for UK Microgeneration Certification Scheme balcony installations.
• Non-invasive installation: Zero building penetration means no structural engineering sign-off required in most jurisdictions.
• Weight compliance: Under 8kg per bracket ensures balcony load limits are not exceeded per EN 1991-1-1.

Note: Always verify local regulations before installation. CYC Energy provides compliance documentation for permit applications in Germany (VDE), UK (MCS), and EU (CE).

Frequently Asked Questions – 10-35° Balcony Solar Bracket

Structural and Installation

Q1: What size PV modules can the 10-35° balcony solar bracket support?
A: The bracket supports standard framed modules from 400W to 600W (typical dimensions: 1,700mm × 1,100mm to 2,000mm × 1,200mm). Custom sizes available upon request.

Q2: Can the bracket be installed on any balcony railing?
A: The bracket includes adjustable clamps compatible with round (30–80mm diameter), square, and flat railings. For non-standard profiles, contact CYC Energy for custom clamp solutions.

Q3: Does the bracket require drilling into the balcony floor or wall?
A: No. The 10-35° balcony solar bracket attaches entirely to the railing using clamps. No drilling, welding, or concrete anchors are required.

Q4: How long does installation take?
A: Typical installation time is 1.5–2 hours per bracket set (two brackets + one module) for a competent installer.

Q5: Is the bracket suitable for high-wind locations?
A: The bracket is engineered for wind loads up to 40 m/s per Eurocode. For extreme wind zones, additional bracing or modules per balustrade may be required. Consult CYC Energy for site-specific engineering.

Performance and Maintenance

Q6: What is the optimal tilt angle for my location?
A: For most European cities (latitude 40°–50°), a fixed angle of 25°–30° provides good annual performance. For seasonal adjustment, refer to the angle optimization table in the technical section.

Q7: Does the bracket require regular maintenance?
A: Minimal maintenance is required. CYC Energy recommends an annual visual inspection of clamps and fasteners, and cleaning of the anodized surface if heavily soiled in industrial areas.

Q8: Can the bracket be removed and reinstalled?
A: Yes. The bracket is designed for reusability. It can be removed and reinstalled on a different balcony or relocated with the owner.

Commercial and Logistics

Q9: What is the MOQ for the 10-35° balcony solar bracket?
A: We accept sample orders starting from 1 unit. For bulk OEM/ODM orders, MOQ applies. Contact us for your specific project requirements.

Q10: How does CYC Energy handle after-sales support?
A: We respond to any quality complaint within 3 hours of receipt, investigate promptly, and provide corrective action or on-site support as required.

Q11: What documentation is provided for permit applications?
A: Complete package: structural calculation summaries, material certificates, installation manual, and compliance declarations (CE, UKCA, MCS as applicable).

Q12: What is the typical delivery time for bulk orders?
A: Sample orders ship within 3–5 working days via DHL/FedEx. Bulk orders (container quantities) typically require 15–30 days production lead time, with sea freight of 7–30 days depending on destination.
